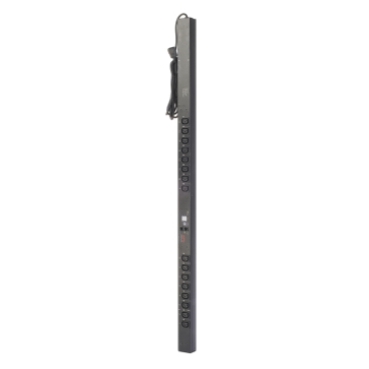

Rack PDU, Switched, Zero U, 10A, 230V, (16) C13
AP7950
Discontinued on:14 June 2022
Recommended replacement(s)
Energy Efficient
Take-back
Transparency
Compatible Software
Specifications
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 200 V 208 V 230 V |
|---|---|
| PDU type | Switched |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60320 C14 |
| Number of rack unit | 0U |
| Cable length | 3.05 m |
| Number of cables | 1 |
| Provided equipment | Cord retention bracket(s) Installation guide Rack mounting brackets Toolless mounting kit User manual |
| Colour | Black |
|---|---|
| Height | 124.5 cm |
| Width | 5.6 cm |
| Depth | 4.4 cm |
| Net weight | 4.32 kg |
| Mounting location | Side |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Mounting position | Vertical |
| Permissible voltage | 200…240 V |
|---|---|
| Max line current | 10 A |
| Input current limits | 10 A |
| Network frequency | 47...63 Hz |
| Number of power socket outlets | 16 IEC 60320 C13 |
|---|
| Product certifications | CE GOST IRAM VDE |
|---|---|
| Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 |
| Ambient air temperature for operation | -5…45 °C |
|---|---|
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0.00…15240.00 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 213.4 cm |
| Package 1 Width | 15.2 cm |
| Package 1 Length | 12.7 cm |
| Package 1 Weight | 5.219 kg |
| Warranty | 2 years repair or replace |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn moreResource performance
Energy efficient product
Take-back program available
Well-being performance
EU RoHS Directive
Compliant
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile
