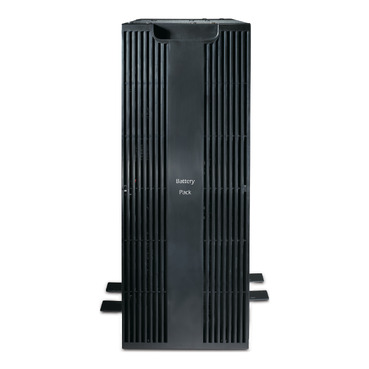

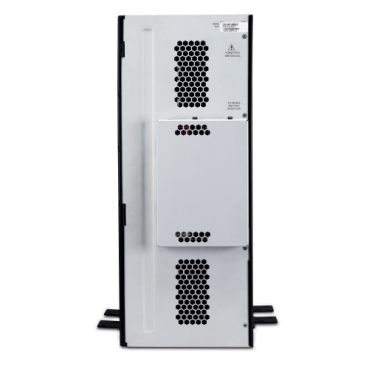

APC Smart-UPS RC 96V Battery Pack
SRC96XLBP
Discontinued on:01 November 2020
SRC96XLBP has not been replaced. Please contact your customer care centre for more information.
Environmental performance of the product Learn more
Sustainable by Design
Take-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backTransparency
Assessment of the product environmental impacts along its life-cycle and availability of the data through a Product Environmental Profile.
TransparencyRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backTransparency
Assessment of the product environmental impacts along its life-cycle and availability of the data through a Product Environmental Profile.
TransparencyRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REACh
Specifications
| Lead time | Usually in Stock |
|---|
| Number of rack unit | 4U |
|---|---|
| Number of cables | 1.0 |
| Battery type | Lead-acid battery |
| Provided equipment | Installation guide User manual |
| Colour | Black |
|---|---|
| Height | 43.2 cm |
| Width | 17.4 cm |
| Depth | 48 cm |
| Net weight | 72.73 kg |
| Mounting mode | Rack-mounted with kit |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Storage Relative Humidity | 0…95 % |
| Number of battery blocks per string | 2 |
|---|---|
| Number of battery free slots | 0 |
| Number of battery filled slots | 3 |
| Device mounting | Stand alone battery stack |
| Additional information | Replace all batteries in operation together (UPS internal and external batteries) all-at-once |
| Number of battery replacement quantity | 3 |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 47.5 cm |
| Package 1 Width | 61 cm |
| Package 1 Length | 85 cm |
| Package 1 Weight | 90 kg |
| Warranty | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
|---|
