APC NetShelter SX, Server Rack Enclosure, 48U, Shock Packaging, 2000 lbs, Black, 2258H x 750W x 1200D mm
AR3357SP
Environmental performance of the product Learn more
Sustainable by Design
Take-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REACh
+ Lifecycle Services
Specifications

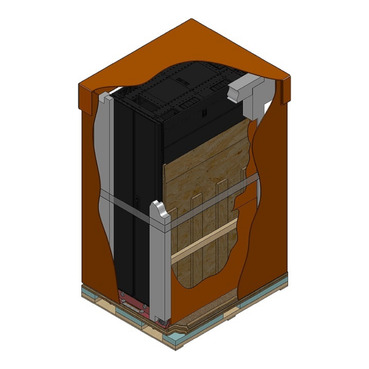

| Presentation | NetShelter SX cabinet and packaging system designed to safely integrate, transport, unload and deploy up to 2000 lbs (907 kg) of IT equipment. The cabinet is paired with a shock absorbing pallet, unloading ramp, and impact resistant shell. The system has been engineered, tested and approved for secure shipment of fully converged systems such as being certified with Cisco® for pre-racking and shipping Cisco Unified Computing System (UCS). |
|---|---|
| Lead time | Usually Ships within 6 Weeks |
| Number of rack unit | 48U |
|---|
| Height | 225.8 cm |
|---|---|
| Width | 75 cm |
| Depth | 120 cm |
| Net weight | 185.45 kg |
| Colour | Black |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 104.8 cm |
| Minimum mounting depth | 26.19 cm |
| Rack width | 19" |
| Marking | 14 gauge EIA mounting rail 16 gauge front door 16 gauge post 16 gauge rear door 18 gauge roof 18 gauge side panels |
| Permanent permissible load | 1020.58 kg dynamic 1700.97 kg static |
| Standards | UL 2416 UL 60950-1 EIA-310E |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 245.1 cm |
| Package 1 Width | 132.1 cm |
| Package 1 Length | 110.5 cm |
| Package 1 Weight | 301.64 kg |
| Number of Units in Package 3 | 1 |
| Warranty | 5 year repair or replace |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn more
Resource performance
Take-back program available
Well-being performance
REACh free of SVHC
Toxic heavy metal free
Mercury free
Certifications & Standards
REACh Regulation
EU RoHS Directive
