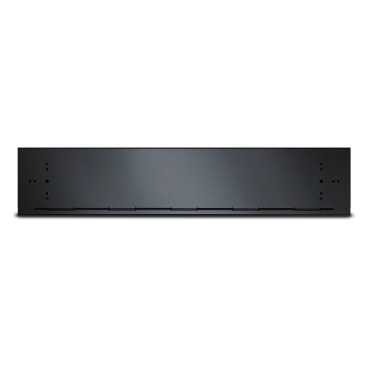

APC SERVICE BYPASS PDU, 230V 10AMP W/ (6) IEC C13
SBP1500RMI
Specifications
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60320 C14 |
| Number of rack unit | 2U |
| Cable length | 1.98 m |
| Number of cables | 1 |
| Provided equipment | User manual Rack mounting brackets |
| Colour | Black |
|---|---|
| Height | 8.9 cm |
| Width | 43.2 cm |
| Depth | 7.6 cm |
| Net weight | 2 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Network frequency | 50/60 Hz |
|---|---|
| Permissible voltage | 220…240 V |
| Max line current | 10 A |
| Input current limits | 10 A |
| Load capacity | 1500 VA |
| Power factor | 0…1 |
| Max current draw | 10 A |
|---|---|
| Number of power socket outlets | 6 IEC 60320 C13 1 IEC Jumpers |
| Number of power socket outlets | 6 |
| Protection type | Circuit breaker |
| Power cable length | 1.22 m |
| Efficiency | 99 % |
| Product certifications | VDE |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Package 1 Height | 15.1 cm |
|---|---|
| Package 1 Width | 46.3 cm |
| Package 1 Length | 29.5 cm |
| Package 1 Weight | 3.5 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 56 |
| Package 2 Height | 113 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 195.608 kg |
| Warranty | 2 years repair or replace |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn moreWell-being performance
Mercury free
RoHS exemption information
REACh Regulation
EU RoHS Directive
Compliant
China RoHS Regulation
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
