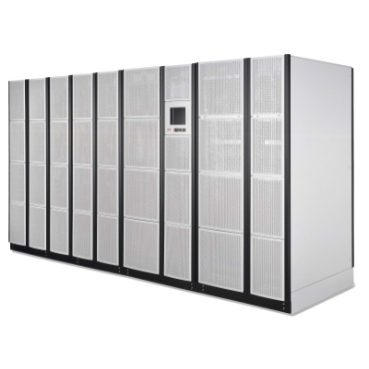

Symmetra MW 1000kW frame, 400V
SYMF1000KH
Discontinued on:12 February 2021
To be end-of-service on:03 June 2032
Energy Efficient
Take-back
Specifications
| Lead time | Special Order - Call for Quoted Lead Times |
|---|
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 1000000 W |
| Rated power in VA | 1000000 VA |
| Output connector type | Hard wire 4-wire (3P + E) 1 Hard wire 5-wire (3P + N + E) 1 Hard wire 4-wire (3P + N) 1 Hard wire 4-wire (3P + PEN) 1 |
| Number of cables | 1 |
| battery type | External battery system |
| Provided equipment | Assembly service Start-up service User manual Installation guide |
| Efficiency | View Efficiency Graph |
|---|---|
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| Battery power in VAH | 0 VAh runtime |
| Battery option | SLR480KH6-FB 3 245604 VAh SLR480KH6-FB 4 327472 VAh SLC480KH6-FB 3 245604 VAh SLC480KH6-FB 4 327472 VAh SLR480KH6-PB 3 254592 VAh SLR480KH6-PB 4 339456 VAh SLC480KH6-PB 3 254592 VAh SLC480KH6-PB 4 339456 VAh |
| Extended runtime | 1 |
| Number of power module free slots | 5 |
|---|---|
| Number of power module filled slots | 0 |
| Redundant | Yes |
| Colour | Light grey (NCS 2703-G84Y) |
|---|---|
| Height | 203.2 cm |
| Width | 413.8 cm |
| Depth | 106.7 cm |
| Net weight | 4196.82 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50 Hz programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8 % |
|---|---|
| Number of input connectors | 1 hard wire 4-wire (3P + E) 1 hard wire 4-wire (3P + PEN) 1 hard wire 5-wire (3P + N + E) |
| Input voltage limits | 323...437 V adjustable 380 V 340...460 V adjustable 400 V 357...477 V adjustable 415 V 323...437 V 380 V 340...460 V 400 V 353...477 V 415 V |
| Input Power Factor at Full Load | 0.99 |
| Maximum configurable power in W | 1000000 W |
|---|---|
| Harmonic distortion | Less than 5 % at full load |
| Output frequency | 50 Hz programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8 % +/- 0.1 % for 50 Hz nominal 50 Hz +/- 0.1 % for 50 Hz nominal |
| Crest factor | Unlimited |
| UPS type | Delta conversion on-line |
| Wave type | Sine wave |
| bypass type | External static bypass |
| Maximum output current | 1838 A |
| Maximum configurable power in VA | 1000000 VA |
| Product certifications | CE |
|---|---|
| Standards | EN 50091-1 EN 50091-2 EN 50091-3 EN 60950 EN/IEC 62040-3 FCC part 15 class A IEC 60950 ISO 14001 ISO 9001 VFI-SS-111 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...3333 ft |
| Ambient air temperature for storage | -50…40 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 75 dBA |
| Heat dissipation | 105600 Btu/h |
| IP degree of protection | IP20 |
| control panel | Touch screen LCD user interface |
|---|---|
| Emergency power off | Yes |
| Warranty | 1 year repair or replace |
|---|
