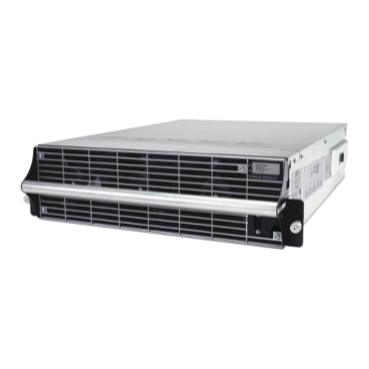

Symmetra PX 10kW Power Module, 208V, High Efficiency
SYPM10KF2
Specifications
| Presentation | A 10kW power module compatible with the Symmetra PX 20/40/100 UPS. Available as a power module replacement, or for increased capacity. |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
| Main Input Voltage | 208 V 208 V 3 phases |
|---|---|
| Main Output Voltage | 208 V 208 V 3 phases |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Number of cables | 1 |
| Provided equipment | Installation guide |
| Colour | Black |
|---|---|
| Height | 5.20 in (13.2 cm) |
| Width | 19.02 in (48.3 cm) |
| Depth | 27.56 in (70 cm) |
| Net weight | 55.23 lb(US) (25.05 kg) |
| Network frequency | 60 Hz +/- 3 Hz |
|---|---|
| Input voltage limits | 177...239 V 208 V |
| Input Power Factor at Full Load | 0.99 |
| Maximum configurable power in W | 10000 W |
|---|---|
| Harmonic distortion | Less than 5 % at full load |
| Output frequency | 57...63 Hz for 60 Hz nominal sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised |
| Crest factor | Unlimited |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Product certifications | cUL listed UL listed |
|---|---|
| Standards | FCC part 15 class A ISO 14001 ISO 9001 UL 60950 |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...3333 ft |
| Ambient air temperature for storage | 5…104 °F (-15…40 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15000 ft (0.00…4572.00 m) |
| Acoustic level | 64 dBA |
| Heat dissipation | 2970 Btu/h |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.86 in (22.5 cm) |
| Package 1 Width | 31.30 in (79.5 cm) |
| Package 1 Length | 23.43 in (59.5 cm) |
| Package 1 Weight | 61.84 lb(US) (28.05 kg) |
| Warranty | 1 year repair or replace |
|---|
