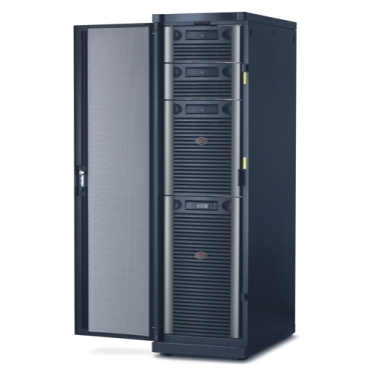

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mount, 208/240V
SYA8K16RMP
Replacement battery (1) is available
Environmental performance of the product Learn more
Sustainable by Design
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChThis product is compatible with
Compatible Software
Specifications
| Lead time | Usually in Stock |
|---|
Run time for load WEnter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 640-6400 W | |
|---|---|
Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. | |
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 120 V 208 V |
| Other Output Voltage | 240 V |
| Rated power in W | 6400 W |
| Rated power in VA | 8000 VA |
| output connection type | 8 NEMA L5-20R 4 NEMA L14-30R |
| Output connector type | Hard wire 4-wire (2P + N + E) 1 |
| Number of rack unit | 19U |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software Documentation CD Installation guide Rack mounting support rails User manual Web/SNMP management card |
| product web sub-family | 4kVA power increments |
|---|---|
| Number of power module free slots | 3 |
| Number of power module filled slots | 2 |
| Redundant | Yes |
| Colour | Black Silver |
|---|---|
| Height | 32.91 in (83.6 cm) |
| Width | 18.58 in (47.2 cm) |
| Depth | 27.09 in (68.8 cm) |
| Net weight | 437.93 lb(US) (198.64 kg) |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 45...65 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 hard wire 4-wire (2P + N + E) |
| Input voltage limits | 96...138 V line to neutral |
| Input harmonic distortion | Less than 7 % for full load |
| Input Power Factor at Full Load | 0.98 |
| Maximum configurable power in W | 12800 W |
|---|---|
| Harmonic distortion | Less than 5 % at full load |
| Output frequency | 47...63 Hz sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
| Crest factor | Up to 5 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Bypass type | Internal bypass (automatic and manual) Optional external bypass |
| Maximum output current | 37 A |
| Maximum configurable power in VA | 16000 VA |
| Product certifications | CSA |
|---|---|
| Standards | FCC part 15 class A OSHPD UL 1778 |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | 5…113 °F (-15…45 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15000 ft (0.00…4572.00 m) |
| Acoustic level | 62 dBA |
| Heat dissipation | 4995 Btu/h |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 2 |
| Number of battery free slots | 2 |
| Battery recharge time | 3 h |
| Additional information | Configurable for 120/208 or 120/240 output voltage |
| Battery charger power | 574 W rated |
| Battery power in VAH | 1728 VAh runtime |
| Battery life | 3…5 year(s) |
| Replacement battery | SYBT5 |
| Battery option | SYBT5 2 3456 VAh SYARMXR3B3 1 4320 VAh SYARMXR3B3 2 6912 VAh SYARMXR9B9 1 9504 VAh SYARMXR9B9 2 17280 VAh SYARMXR9B9 3 25056 VAh SYARMXR9B9 4 32832 VAh SYARMXR9B9 5 40608 VAh |
| Extended runtime | 1 |
| Free slots | 1 |
|---|---|
| Preinstalled device | Network management card 2 with environmental monitoring |

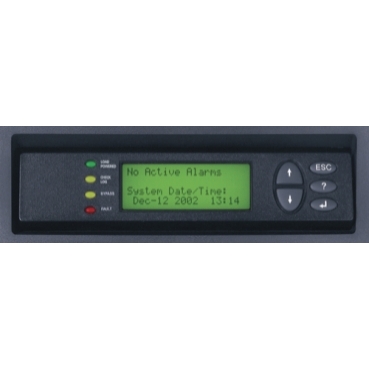

| Control panel | Multifunction LCD status and control console |
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency power off | Yes |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 41.50 in (105.4 cm) |
| Package 1 Width | 39.25 in (99.7 cm) |
| Package 1 Length | 23.58 in (59.9 cm) |
| Package 1 Weight | 528.14 lb(US) (239.56 kg) |
| Warranty | 2 years repair or replace |
|---|
