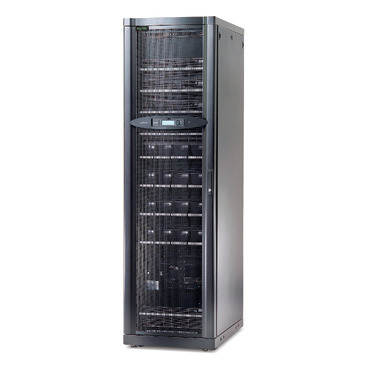

Symmetra PX 40kW Scalable to 40kW N+1, 208V


Energy Efficient
Energy Efficient

+ Lifecycle Services



PresentationA high-efficiency 3-phase UPS that is scaleable as your data center grows up to 40kW/40kVA. Suitable for small to medium data center application.
Lead timeUsually Ships within 3 Weeks
Run time for load
Enter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down.
Min-max: 4000-40000 W
Max. Capacity Used
The maximum percentage of UPS capacity used to support your specified load.
Main Input Voltage208 V 3 phases
Main Output Voltage120 V
208 V
208 V 3 phases
Rated power in W40000 W
Rated power in VA40000 VA
Output connector typeHard wire 5-wire (3P + N + E) 1
Connections - terminals1 screw terminals
Number of cables1
Battery typeLead-acid battery
Provided equipmentNetwork management card
Start up included
User manual
Number of power module5
Number preinstalled power module4
Number of power module free slots1
Number of power module filled slots4
Height81.50 in (207 cm)
Width23.62 in (60 cm)
Depth35.51 in (90.2 cm)
Net weight1708.58 lb(US) (775 kg)
USB compatibleNo
Network frequency50/60 Hz
Number of input connectors1 hard wire 5-wire (3P + N + E)
Input voltage limits177...240 V
Input Power Factor at Full Load0.99
Maximum configurable power in W40000 W
Harmonic distortionLess than 5 %
Output frequency57...63 Hz for 60 Hz nominal sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised
UPS typeDouble conversion online
Wave typeSine wave
Bypass typeBuilt-in static bypass
Maximum output current111 A
Maximum configurable power in VA40000 VA
Product certificationscUL listed
StandardsCSA C22.2 No 107.3-05
EN 50091-1
EN 50091-2
FCC part 15 class A
ISO 14001
ISO 9001
UL 1778
UL 60950
Ambient air temperature for operation32…104 °F (0…40 °C)
Relative humidity0…95 %
Operating altitude0...10000 ft
Ambient air temperature for storage5…104 °F (-15…40 °C)
Storage Relative Humidity0…95 %
Storage altitude0…50000 ft (0.00…15240.00 m)
Acoustic level64 dBA
Heat dissipation11611 Btu/h
NEMA degree of protectionNEMA 1
Batteries & Runtime
Run TimeView Runtime Graphaction_new_window
EfficiencyView Efficiency Graphaction_new_window
Number of battery filled slots4
Number of battery free slots0
Battery recharge time2 h
Battery charger power5502 W rated
Battery power in VAH11059 VAh runtime
Battery optionSYCFXR8-8 1 33177 VAh
SYCFXR8-8 2 55296 VAh
SYCFXR8-8 3 77414 VAh
SYCFXR8-8 4 99532 VAh
Extended runtime1
Replacement batterySYBT4action_new_window
Communications & Management
Free slots2
Preinstalled deviceNetwork management card 2 - Masterpack for Symmetra 3-Phase
Control panelMultifunction LCD status and control console
AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Emergency power offYes
Packing Units
Unit Type of Package 1Db
Number of Units in Package 11
Package 1 Height90.98 in (231.1 cm)
Package 1 Width41.50 in (105.4 cm)
Package 1 Length29.49 in (74.9 cm)
Package 1 Weight1882.97 lb(US) (854.1 kg)
Contractual warranty
Warranty1 year on-site repair or replace with factory authorized Start-Up
