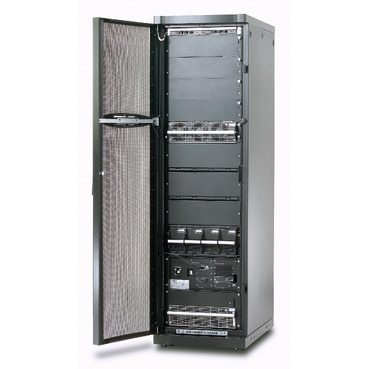

Symmetra PX 10kW Scalable to 40kW N+1, 208V
SY10K40F
Replacement battery (1) is available
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientThis product is compatible with
Specifications
| Presentation | A high-efficiency 3-phase UPS that is scaleable as your data center grows up to 40kW/40kVA. Suitable for small to medium data center application. |
|---|---|
| Lead time | Usually Ships within 3 Weeks |
Run time for load WEnter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 1000-10000 W | |
|---|---|
Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. | |
| Main Input Voltage | 208 V 3 phases |
| Main Output Voltage | 120 V 208 V 208 V 3 phases |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connector type | Hard wire 5-wire (3P + N + E) 1 |
| Battery type | Lead-acid battery |
| Provided equipment | Network management card Start up included User manual |
| Bypass wiring configuration | 5 wire (3P + N + E) |
|---|---|
| Max bypass input current | 162 A |
| Bypass current protection | 175 A |
| Number of power module | 5 |
| Number preinstalled power module | 1 |
| Number of power module free slots | 4 |
| Number of power module filled slots | 1 |
| Redundant | Yes |
| Colour | Black |
|---|---|
| Height | 81.50 in (207 cm) |
| Width | 23.62 in (60 cm) |
| Depth | 35.51 in (90.2 cm) |
| Net weight | 896.89 lb(US) (406.82 kg) |
| USB compatible | No |
| Network frequency | 50/60 Hz |
|---|---|
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Input voltage limits | 177...240 V |
| Maximum input current | 162 A |
| Switching current capacity | 175 A |
| Max short time withstand current | 30 kA |
| Input protection type | 3-pole circuit breaker |
| Input Power Factor at Full Load | 0.99 |
| Maximum configurable power in W | 40000 W |
|---|---|
| Harmonic distortion | Less than 5 % |
| Output frequency | 57...63 Hz for 60 Hz nominal sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Output voltage tolerance | +/- 1% static and +/- 5% at 100% load step |
| Output harmonic distortion | < 2% for 0 to 100% linear load and < 5% for full non-linear load |
| Output overload operation | 60 seconds at 125% and 30 seconds at 150% |
| Required output current protection | 150 A |
| Bypass type | Built-in static bypass |
| Efficiency | 94 % in battery operation) |
| Maximum output current | 111 A |
| Maximum configurable power in VA | 40000 VA |
| Product certifications | cUL listed |
|---|---|
| Standards | CSA C22.2 No 107.3-05 EN 50091-1 EN 50091-2 EN 50091-3 FCC part 15 class A ISO 14001 ISO 9001 UL 1778 UL 60950 |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | 5…104 °F (-15…40 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…50000 ft (0.00…15240.00 m) |
| Acoustic level | 64 dBA |
| Heat dissipation | 3381 Btu/h |
| NEMA degree of protection | NEMA 1 |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 1 |
| Number of battery free slots | 3 |
| Battery recharge time | 2 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | +/- 192 V (split battery referenced to neutral) |
| Overcurrent protection | 125 A |
| Battery overload operation | 60 seconds at 125% and 30 seconds at 150% |
| Battery charger power | 1375 W rated |
| Battery power in VAH | 2764 VAh runtime |
| Battery option | SYBT4 1 5529 VAh SYBT4 3 11059 VAh SYCFXR8-8 1 33177 VAh SYCFXR8-8 4 99532 VAh SYBT4 2 8294 VAh SYCFXR8-8 2 55296 VAh SYCFXR8-8 3 77414 VAh |
| Extended runtime | 1 |
| Replacement battery | SYBT4 |
| Free slots | 2 |
|---|---|
| Preinstalled device | Network management card 2 - Masterpack for Symmetra 3-Phase |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency power off | Yes |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 90.98 in (231.1 cm) |
| Package 1 Width | 41.50 in (105.4 cm) |
| Package 1 Length | 29.49 in (74.9 cm) |
| Package 1 Weight | 999.09 lb(US) (453.18 kg) |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
