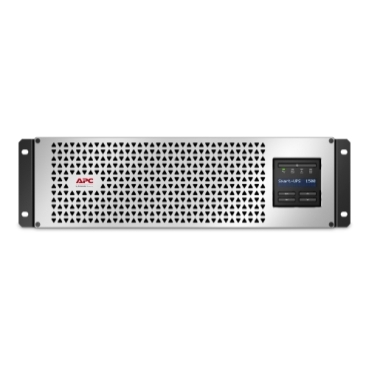

APC Smart-UPS Lithium-ion Short-Depth UPS | APC by Schneider Electric

APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD

SMTL1500RM3UC

notification_ok

1500VA/1350W line interactive pure sine wave 3U rackmount UPS

notification_ok

Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets

notification_ok

Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS

notification_ok

Short depth UPS provides extra space for cable management

notification_ok

Cloud-based remote power monitoring via SmartConnect Ethernet Port

notification_ok

Environmental performance of the product Learn more

Sustainable by Design

location_map

Find a reseller

arrow2_left

communication_bubbles2

Contact support

page

mail

Subscribe to the newsletter

SFPCBE1005

+ Lifecycle Services

Scheduled 5X8 Assembly and Power-Up Service

WASSEMUPS-3R-SB-00

5 X 8 Power Up for Smart-UPS

WSTRTUP-SB-00

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Specifications

Overview
Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually in Stock

Main
Run time for load W information_circle Enter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 68-1350 W
Max. Capacity Used information_circle The maximum percentage of UPS capacity used to support your specified load.
Main Input Voltage	120 V
Main Output Voltage	120 V
Rated power in W	1350 W
Rated power in VA	1440 VA
Input Connection Type	NEMA 5-15P
output connection type	6 NEMA 5-15R
Number of rack unit	3U
Cable length	8 ft (2.44 m)
Number of cables	1
Battery type	Li-Ion (Lithium-Ion)
Provided equipment	Installation guide Rack mounting support rails USB cable

General
Number of power module filled slots	0
Number of power module free slots	0
product web sub-family	Lithium-Ion
Redundant	No

Physical
Height	5.16 in (13.1 cm)
Width	17.24 in (43.8 cm)
Depth	11.89 in (30.2 cm)
Net weight	42.99 lb(US) (19.5 kg)
Mounting preference	No preference
Mounting mode	Rack-mounted
Two post mountable	1
USB compatible	No

Input
Input voltage limits	75...154 V adjustable 82...144 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing

Output
Graph start point	68
Harmonic distortion	Less than 5 %
Maximum configurable power in VA	1440 VA
Maximum configurable power in W	1350 W
Transfer time	6 ms typical : 10 ms maximum
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Conformance
Product certifications	NOM
Equipment protection policy	Lifetime : $150000

Environmental
Acoustic level	45 dBA
Heat dissipation	135 Btu/h
Operating altitude	0...10000 ft
Ambient air temperature for operation	32…104 °F (0…40 °C)
Ambient air temperature for storage	14…104 °F (-10…40 °C)
Storage altitude	0…25000 ft (0.00…7620.00 m)
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing

Batteries & Runtime
Run Time	View Runtime Graphaction_new_window
Efficiency	View Efficiency Graphaction_new_window
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	2 h
Battery design life	5…10 year(s)
Battery life	5…10 year(s)
Battery power in VAH	240 VAh capacity 310 VAh runtime
Battery charger power	154 W rated

Communications & Management
Control panel	Multifunction LCD status and control console
Free slots	1
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering
Surge energy rate	680 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units
Unit Type of Package 1	Db
Number of Units in Package 1	1
Package 1 Height	10.98 in (27.9 cm)
Package 1 Width	17.64 in (44.8 cm)
Package 1 Length	22.99 in (58.4 cm)
Package 1 Weight	50.00 lb(US) (22.68 kg)

Contractual warranty
Warranty	5 year repair or replace
