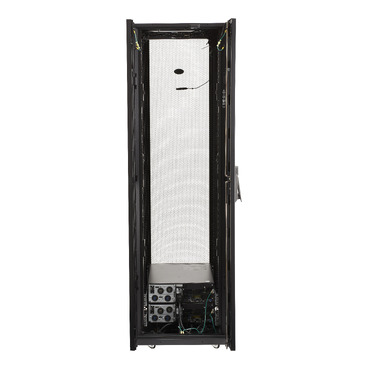

Ecostruxure Micro Data Center, with 42U SX rack, 5kVA, 208V, 60 Hz, pre assembled, 1991H x 600W x 1070D mm
MDC42SX5KVAT
Specifications
| Presentation | A pre-assembled Micro Data Center includes: shock packaged rack, two UPS, two switched rack PDUs, NetBotz 250 with rack access handles, one temperature/humidity probe, blanking panels, and brush strip. |
|---|---|
| Lead time | Usually in Stock |
| Height | 78.39 in (199.1 cm) |
|---|---|
| Width | 23.62 in (60 cm) |
| Depth | 42.13 in (107 cm) |
| Number of rack unit | 42U |
| Net weight | 620.01 lb(US) (281.23 kg) |
| Mounting mode | Not rack-mountable |
| Minimum mounting depth | 7.52 in (19.1 cm) |
| Mounting preference | No preference |
| Maximum mounting depth | 36.02 in (91.49 cm) |
| Max CTO ship weight | 2000 lb(US) (907.18 kg) |
| Baying included | No |
| Permanent permissible load | 2250 lb(US) (1020.58 kg) dynamic 3000 lb(US) (1360.78 kg) static |
| Marking | 14 gauge EIA mounting rail 16 gauge front door 16 gauge post 18 gauge rear door 18 gauge roof 18 gauge side panels |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 85.79 in (217.9 cm) |
| Package 1 Width | 52.01 in (132.1 cm) |
| Package 1 Length | 43.50 in (110.5 cm) |
| Package 1 Weight | 874.99 lb(US) (396.89 kg) |
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn moreWell-being performance
Mercury free
RoHS exemption information
EU RoHS Directive
Compliant
