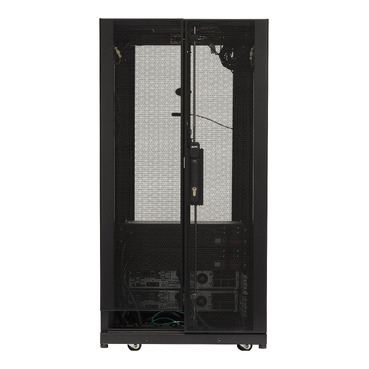

Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm




PresentationA pre-assembled Micro Data Center includes: shock packaged rack, two UPS, two switched rack PDUs, NetBotz 250 with rack access handles, one temperature/humidity probe, blanking panels, and brush strip.
Lead timeUsually in Stock
Height47.20 in (119.9 cm)
Width23.62 in (60 cm)
Depth42.13 in (107 cm)
Number of rack unit24U
Net weight420.00 lb(US) (190.51 kg)
Mounting modeNot rack-mountable
Minimum mounting depth7.52 in (19.1 cm)
Mounting preferenceNo preference
Maximum mounting depth36.02 in (91.49 cm)
Max CTO ship weight1250 lb(US) (566.99 kg)
Baying includedNo
Permanent permissible load2250 lb(US) (1020.58 kg) dynamic
3000 lb(US) (1360.78 kg) static
Marking14 gauge EIA mounting rail
16 gauge front door
16 gauge post
18 gauge rear door
18 gauge roof
18 gauge side panels
Packing Units
Unit Type of Package 1Db
Number of Units in Package 11
Package 1 Height53.15 in (135 cm)
Package 1 Width47.99 in (121.9 cm)
Package 1 Length35.39 in (89.9 cm)
Package 1 Weight570.01 lb(US) (258.55 kg)


Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
