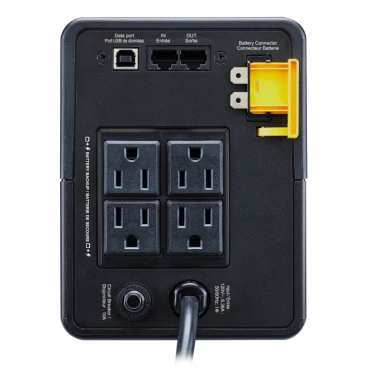

APC Back UPS, 750VA/410W, Tower, 120V, 4x NEMA 5-15R outlets, USB Type A + C Ports, User Replaceable Battery
BVK750M2
Compatible Software
Specifications
Run time for load WEnter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 41-410 W | |
|---|---|
Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. | |
| Other Input Voltage | 108...150 V |
| Rated power in W | 410 W |
| Rated power in VA | 750 VA |
| output connection type | 4 NEMA 5-15R |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Colour | Black |
|---|---|
| Height | 6.30 in (160 mm) |
| Width | 4.72 in (120 mm) |
| Depth | 13.98 in (355 mm) |
| Net weight | 12.13 lb(US) (5.5 kg) |
| USB compatible | Yes |
| plug standard | 5-15P |
|---|---|
| Input voltage limits | 108...150 V |
| Input protection type | Circuit breaker |
| Maximum configurable power in W | 410 W |
|---|---|
| Output frequency | 50/60 Hz |
| Wave type | Stepped approximation to a sinewave |
| IP degree of protection | IP20 CSA C22.2 No 107.3 |
|---|
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Battery recharge time | 6 h |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery power in VAH | 92 VAh |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Emergency power off | Yes |
|---|
| Surge energy rate | 350 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.84 in (25 cm) |
| Package 1 Width | 7.76 in (19.7 cm) |
| Package 1 Length | 16.93 in (43 cm) |
| Package 1 Weight | 13.45 lb(US) (6.1 kg) |
| Warranty | 3 years |
|---|
