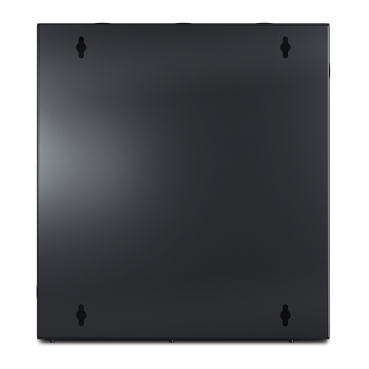

APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth
AR100HD
Environmental performance of the product Learn more
Sustainable by Design
Take-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REACh
Compatible Software
Description
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, vented door, 5 year APC warranty
Specifications
| Presentation | Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top-mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19" rack width, ships fully assembled, vented door, 5 year APC warranty. |
|---|---|
| Lead time | Usually in Stock |
| Number of rack unit | 13U |
|---|---|
| Number of cables | 1 |
| Provided equipment | Key(s) User manual Wall-mounting template |
| Height | 26.10 in (66.3 cm) |
|---|---|
| Width | 22.99 in (58.4 cm) |
| Depth | 24.84 in (63.1 cm) |
| Net weight | 94.20 lb(US) (42.73 kg) |
| Colour | Black |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Maximum mounting depth | 19.00 in (48.26 cm) |
| Rack width | 19" |
| Marking | 16 gauge EIA mounting rail 16 gauge front door 16 gauge post 13 gauge rear door 18 gauge roof 18 gauge side panels |
| Permanent permissible load | 200 lb(US) (90.72 kg) static |
| Standards | EIA-310E |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 32.99 in (83.8 cm) |
| Package 1 Width | 27.01 in (68.6 cm) |
| Package 1 Length | 30.51 in (77.5 cm) |
| Package 1 Weight | 115.02 lb(US) (52.17 kg) |
| Warranty | 5 year repair or replace |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn more
Resource performance
Take-back program available
Well-being performance
REACh free of SVHC
Toxic heavy metal free
Mercury free
Certifications & Standards
REACh Regulation
EU RoHS Directive
