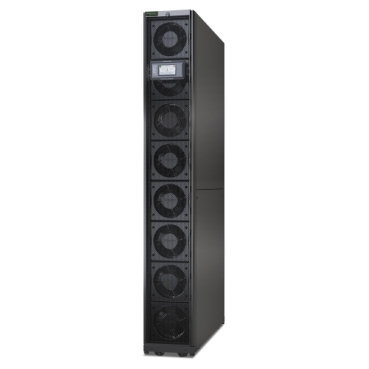

InRow RC, 300mm, Chilled Water, 100-240V, 50/60 Hz - ST
ACRC301S
Specifications
| Lead time | Special Order - Call for Quoted Lead Times |
|---|
| Main Input Voltage | 100...120 V 200...240 V |
|---|---|
| Input Connection Type | IEC 60309 16 A 2P + E NEMA L5-20P |
| Number of rack unit | 42U |
| Number of cables | 2 |
| Provided equipment | Installation guide Operations and maintenance manual |
| Air discharge option | Horizontal |
|---|---|
| Intake air option | Rear return |
| air flow | 3200 ft³/min (1510.23 l/s) |
| Minimum water inlet temperature | 45 °F (7 °C) |
| Condensate pump flow | 1.3 Gal/hr(US) (0.00 m3/h) |
| Colour | Black |
|---|---|
| Height | 78.39 in (199.1 cm) |
| Width | 11.81 in (30 cm) |
| Depth | 43.11 in (109.5 cm) |
| Net weight | 405.65 lb(US) (184 kg) |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Number of feeders | 2 |
|---|---|
| Input power | 800 W |
| Network frequency | 50/60 Hz |
| Product certifications | C-Tick CE GOST MEA VDE |
|---|---|
| Standards | EN 55022 class A EN 55024 EN 60950 IEC 60950 IEC 61000-3-2 IEC 61000-3-3 |
| Control panel | Multifunction LCD status and control console |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 83.39 in (211.8 cm) |
| Package 1 Width | 44.76 in (113.7 cm) |
| Package 1 Length | 29.37 in (74.6 cm) |
| Package 1 Weight | 423.29 lb(US) (192 kg) |
| Number of Units in Package 3 | 1 |
| Warranty | 1 year (parts only) |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn moreEU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
