Galaxy VM UPS Modular Battery String
GVMMBTU
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backTransparency
Assessment of the product environmental impacts along its life-cycle and availability of the data through a Product Environmental Profile.
TransparencyEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backTransparency
Assessment of the product environmental impacts along its life-cycle and availability of the data through a Product Environmental Profile.
TransparencySpecifications

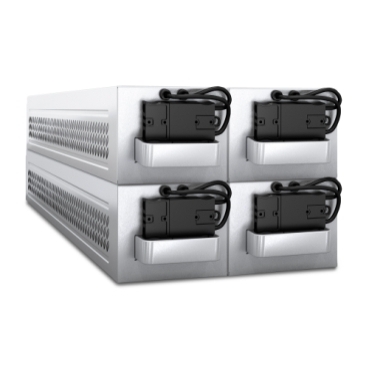

| Presentation | Modular, swappable, high-performance battery string containg 4 battery cartridges with an 8 year design lifecycle. To be used with the Galaxy VM narrow and wide modular battery cabinets |
|---|---|
| Lead time | Usually in Stock |
| Battery type | VRLA |
|---|---|
| Provided equipment | Installation guide |
| Colour | Slate grey |
|---|---|
| Height | 11.4 cm |
| Width | 13.7 cm |
| Depth | 80.8 cm |
| Net weight | 120 kg |
| Product certifications | C-Tick CE RCM |
|---|---|
| Standards | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 FCC part 15 class A IBC 2012 and CBC2013 to Sds=2.02g OSHPD UL 1778 VFI-SS-111 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Operating altitude | 0...3333 ft |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -25…55 °C |
| Storage altitude | 0.00…14999.82 m |
| Storage Relative Humidity | 0…95 % |
| Battery location | Internal battery |
|---|---|
| Battery life | 5…8 year(s) |
| Device mounting | Enclosed battery cartridge |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.6 cm |
| Package 1 Width | 92.4 cm |
| Package 1 Length | 20.9 cm |
| Package 1 Weight | 126.01 kg |
| Warranty | 1 year (parts only) |
|---|
