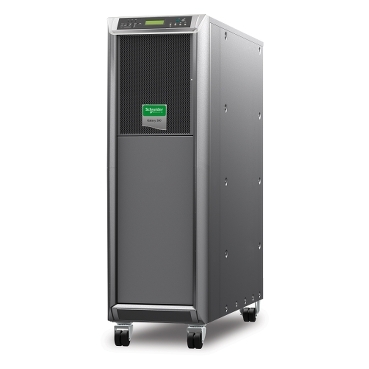

MGE Galaxy 300i 20kVA 400V 3:1 with Transformer, Start-up 5x8
G3HTI20K3ILS
Discontinued on:31 December 2019
Recommended replacement(s)
Specifications
Presentation | Effective three phase power protection against downtime and data loss for mission critical applications. Ruggedized version including dust filter,conformance coated boards, integrated transformer, and IP 21 Kit protection for harsh environments. UPS supplied without internal batteries. Requires purchase of external battery cabinet. Please click here for additional runtime information. |
---|---|
Lead time | Usually Ships within 2 Weeks |
Main Input Voltage | 400 V 3 phases |
---|---|
Other Input Voltage | 380 V 415 V |
Main Output Voltage | 230 V |
Rated power in W | 16000 W |
Rated power in VA | 20000 VA |
Output connector type | Hard wire 3-wire (H N + E) 1 |
Battery type | External battery system |
Provided equipment | CD with software Installation guide Network management card Start-up service User manual |
product web sub-family | Galaxy 300i |
---|---|
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
Redundant | No |
Height | 130 cm |
---|---|
Width | 50 cm |
Depth | 95 cm |
Net weight | 185 kg |
Mounting preference | No preference |
USB compatible | No |
Network frequency | 45...65 Hz |
---|---|
Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
Input voltage limits | 323...437 V adjustable 380 V 340...460 V adjustable 400 V 357...477 V adjustable 415 V 340...477 V |
Maximum input current | 30 A |
Switching current capacity | 63 A |
Input harmonic distortion | Less than 5 % for full load |
Input protection type | GL fuse |
Inrush current | 200 A peak |
Load power factor | 0.5 leading to 0.5 lagging |
Input Power Factor at Full Load | 0.99 |
Maximum configurable power in W | 16000 W |
---|---|
Harmonic distortion | Less than 5 % |
Output frequency | 50/60 Hz +/- 5 % sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised |
Crest factor | 2.5 : 1 |
Wave type | Sine wave |
Output voltage tolerance | +/- 2% static and 100% load step |
Output harmonic distortion | < 3% linear load and < 5% non-linear load |
Output overload operation | 60 seconds at 120% and 30 seconds at 145% |
Required output current protection | 250 A |
Bypass type | Built-in maintenance bypass |
Maximum output current | 130 A |
Maximum configurable power in VA | 20000 VA |
Product certifications | CE TÜV |
---|---|
Standards | EN/IEC 62040-1-1 EN/IEC 62040-2 EN/IEC 62040-3 IEC 61000-4-5 IEC 62040-2 VFI-SS-111 |
Ambient air temperature for operation | 0…35 °C |
---|---|
Relative humidity | 0…95 % |
Operating altitude | 0...10000 ft |
Ambient air temperature for storage | -10…60 °C |
Storage Relative Humidity | 0…95 % |
Storage altitude | 0.00…9144.00 m |
Acoustic level | 54.5 dBA |
heat dissipation | 1212 Btu/h |
IP degree of protection | IP21 |
Efficiency | View Efficiency Graph |
---|---|
Number of battery filled slots | 0 |
Number of battery free slots | 0 |
Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
Battery power in VAH | 0 VAh runtime |
Extended runtime | 0 |
Preinstalled device | Network management card |
---|---|
control panel | Multifunction LCD status and control console |
Emergency power off | Yes |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 144 cm |
Package 1 Width | 80 cm |
Package 1 Length | 96.5 cm |
Package 1 Weight | 210.558 kg |
Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
---|
