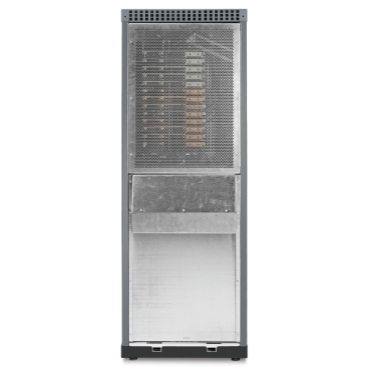

MGE Galaxy 3500 Extended Run Frame, with MCCB, with 2 Battery Modules Exp. to 6
G35TBXR2B6
Discontinued on:05 July 2021
To be end-of-service on:31 December 2030
Specifications
| Lead time | Usually Ships within 2 Weeks |
|---|
| Main Input Voltage | 208 V 3 phases 400 V 3 phases |
|---|---|
| Battery type | Lead-acid battery |
| Provided equipment | Installation guide |
| Colour | Grey |
|---|---|
| Height | 149.9 cm |
| Width | 52.3 cm |
| Depth | 92.5 cm |
| Net weight | 388 kg |
| Mounting mode | Not rack-mountable |
| Network frequency | 50/60 Hz |
|---|
| Product certifications | CSA |
|---|---|
| Standards | CSA C22.2 No 107.1 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…85 % |
| Ambient air temperature for storage | 0…30 °C |
| Storage altitude | 0.00…4572.00 m |
| Storage Relative Humidity | 0…85 % |
| Number of battery blocks per string | 4 |
|---|---|
| Number of battery free slots | 4 |
| Number of battery filled slots | 2 |
| device mounting | Enclosed battery cabinet |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 164.3 cm |
| Package 1 Width | 106.2 cm |
| Package 1 Length | 65 cm |
| Package 1 Weight | 418 kg |
| Warranty | 1 year repair or replace |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn moreEU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
