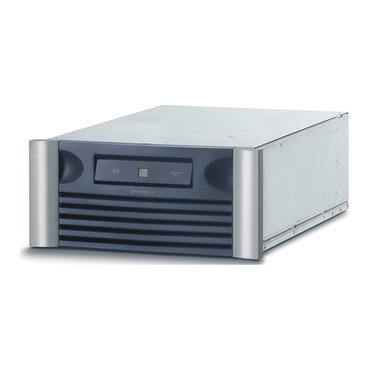

APC SYMMETRA LX 3 BATTERY RACK-MOUNT XR FRAME, 230V
SYBFXR3RMI
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REACh
Specifications
| Presentation | Extended run power protection for servers, networks, and telecommunications |
|---|---|
| Lead time | Usually in Stock |
| Number of rack unit | 5U |
|---|---|
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | Installation guide User manual |
| Colour | Black |
|---|---|
| Height | 21.5 cm |
| Width | 47.2 cm |
| Depth | 68.6 cm |
| Net weight | 26.82 kg |
| Mounting mode | Rack-mounted |
| Product certifications | BSMI VCCI VDE |
|---|---|
| Standards | EN 50091-1 EN 50091-2 EN 60950 IEC 60950 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Operating altitude | 0...10000 ft |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…4572.00 m |
| Storage Relative Humidity | 0…95 % |
| Battery location | Battery cabinet |
|---|---|
| Number of battery free slots | 3 |
| Number of battery filled slots | 0 |
| Battery manufacturer | Panasonic |
| Device mounting | Enclosed battery cabinet |
| Number of battery replacement quantity | 3 |
| Replacement battery | SYBT5 |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 34.3 cm |
| Package 1 Width | 98 cm |
| Package 1 Length | 59.9 cm |
| Package 1 Weight | 30.92 kg |
| Warranty | 2 years repair or replace |
|---|
Sustainability
Resource performance
Energy efficient product
Take-back program available
Well-being performance
Lead free
Mercury free
Certifications & Standards
REACh Regulation
EU RoHS Directive
